LG 4Inch Industrial LCD Display with 320*240 Pixels Resolution and 450cd/m2 Brightness

Product Categories

FOCUS VISION TECHNOLOGY LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Package : Original industrial packing

Quality : Brand new Original

brightness : 450 CD/M2

contrast ratio : 400 :1

Brand Name : LG

Model Number : Lb040q02-td02

Certification : Rohs,CE,FCC

Place of Origin : China

MOQ : 10pcs

Price : Negotiation

Payment Terms : T/T,W,Western Union,MoneyGram

Supply Ability : 3000pcs per week

Delivery Time : 4-5 working day

Packaging Details : Industrial packing

color : 262K

resolution : 320*240

style : 60PIN IPS

Contact Now

LG 4-Inch Industrial LCD Display 320×240 Pixels 60 Pin 450cd/m² LB040Q02-TD02/TD05

Product Overview

High-quality industrial LCD display module from LG LCD, designed for reliable performance in demanding environments.

Technical Specifications

Brand	LG LCD
Model	LB040Q02-TD02
Diagonal Size	4.0 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	320(RGB)×240 [QVGA]
Configuration	RGB Vertical Stripe
Active Area	81.6(H)×61.2(V) mm
Outline Dimensions	98.4(H)×78(V) mm
Bezel Area	85.4(H)×65.0(V) mm
Surface Treatment	Antiglare
Luminance	450 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	10/30 (Typ.)(Tr/Td)
Viewing Angle	65/65/50/65 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K
Light Source	CCFL [1 pcs], 20K hours, W/O Driver
Weight	90.0/100g (Typ./Max.)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	60 pins CMOS/TTL (1 ch, 6-bit), FPC
Power Supply	3.3/5.0V (Typ.)(VCC/VDD)
Operating Temperature	-30 ~ 85 °C
Storage Temperature	-40 ~ 85 °C
Vibration Level	2.9G (28.4 m/s²)

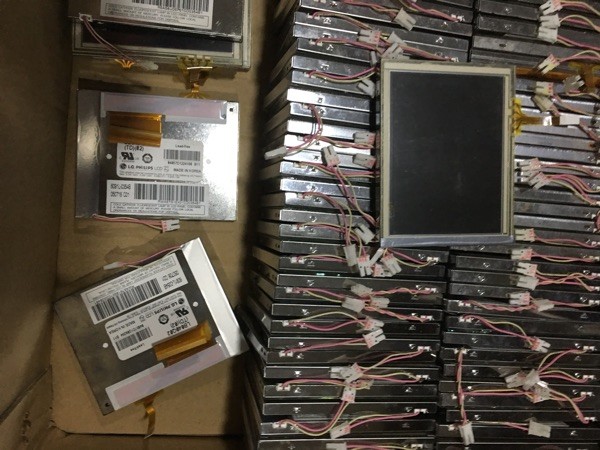

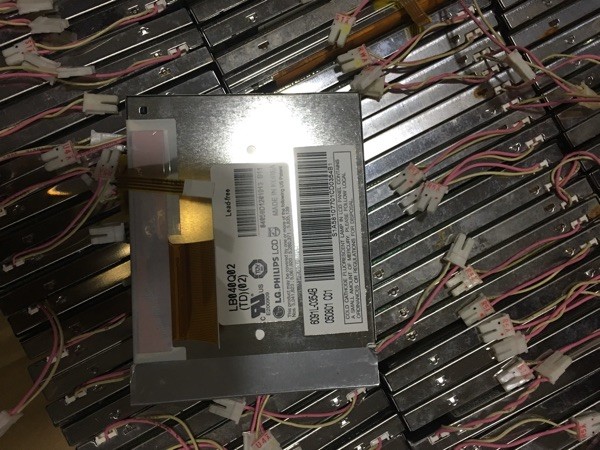

Product Images

All original products will be sent to customers after full testing one by one.

Specification details can be sent to you via email. Please contact us for complete documentation.
